Driver Power Seat Switch: Function

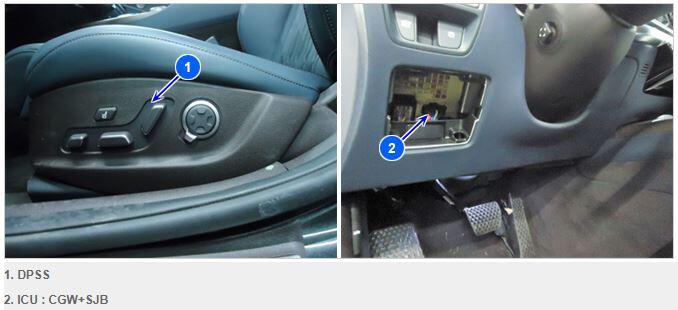

G15558599Courtesy of HYUNDAI MOTOR AMERICA

DPSS* controls the position adjustment of Driver Seat. And it is connected to ICU* to form B-CAN network of the vehicle.

Component Name_ETM Description ETM
DPSS* "DRIVER POWER SEAT SWITCH" Driver Power Seat Switch SD200-6
ICU*
CGW
SJB		 → "ICU JUNCTION BLOCK"
→ "ICU JUNCTION BLOCK_IPS CONTROL MODULE"
→ "ICU JUNCTION BLOCK"		 → [CGW+SJB] Integrated Central control Unit
→ Central Gateway
→ Smart Junction Block
