Driver memory Power Seat Module (DPSM)

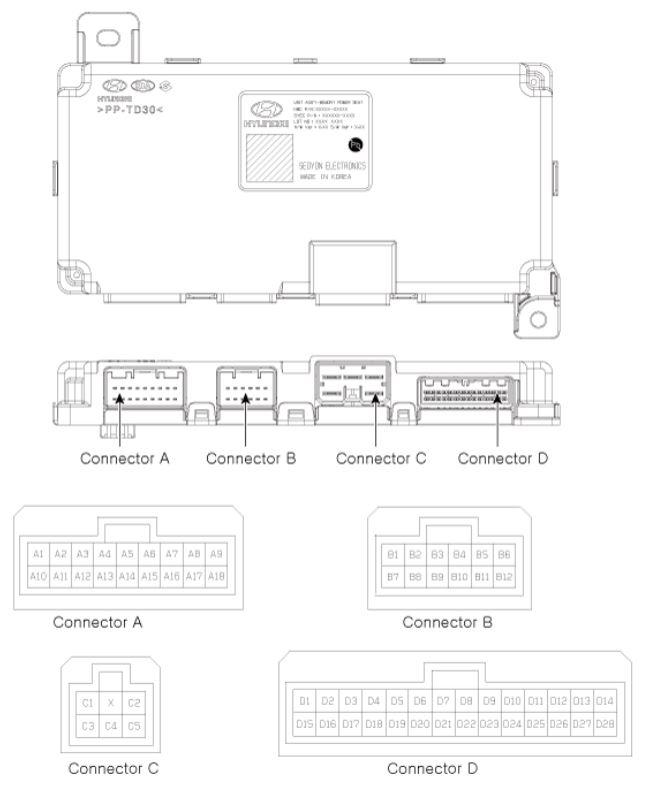

G15550115Courtesy of HYUNDAI MOTOR AMERICA
No Connector A Connector B Connector C Connector D
1 - Ground - -
2 Head rest (Forward) Ground B-CAN (High) -
3 Head rest (Up) Battery (+) B-CAN (Low) Cushion extension hall sensor
4 Shoulder rest (Forward) Battery (+) LIN Communication Head rest hall sensor (Up/Down)
5 Cushion extension (Forward)   - -
6 Rear height (Up) - Hall sensor power
7 Front tilt (Up) - Ignition 1
8 Reclining (Forward) - Battery (+)
9 Slide (Forward) Slide hall sensor Ground
10 - Front tilt hall sensor -
11 Head rest (Backward) - Shoulder rest hall sensor
12 Head rest (Down) - Head rest hall sensor (slide)
13 Shoulder rest (Backward) - -
14 Cushion extension (Backward) - -
15 Rear height (Down) - -
16 Front tilt (Down) - -
17 Reclining (Backward) - -
18 Slide (Backward) -
19 - Reclining hall sensor
20 - Rear height hall sensor
