Head Up Display: Function

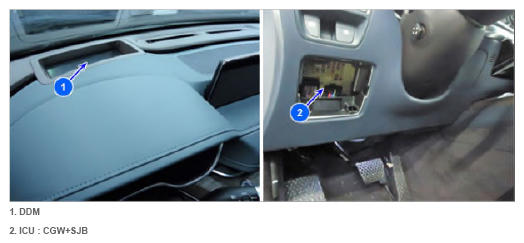

HUD* is a convenience device that minimizes the driver's gaze shift by displaying information necessary for the driver such as driving information, vehicle speed and warning light on the windshield of the vehicle. And it is connected to ICU* to form C-CAN network and M-CAN network of the vehicle.
| Component | Name_ETM | Description | ETM |
|---|---|---|---|
| HUD* | "HUD UP DISPLAY" | → Head Up Display | SD943-1 |
| ICU* CGW SJB |
→ "ICU JUNCTION BLOCK" → "ICU JUNCTION BLOCK_IPS CONTROL MODULE" → "ICU JUNCTION BLOCK" |
→ [CGW+SJB] Integrated Central control Unit → Central GateWay → Smart Junction Block |
SD200-2 |
