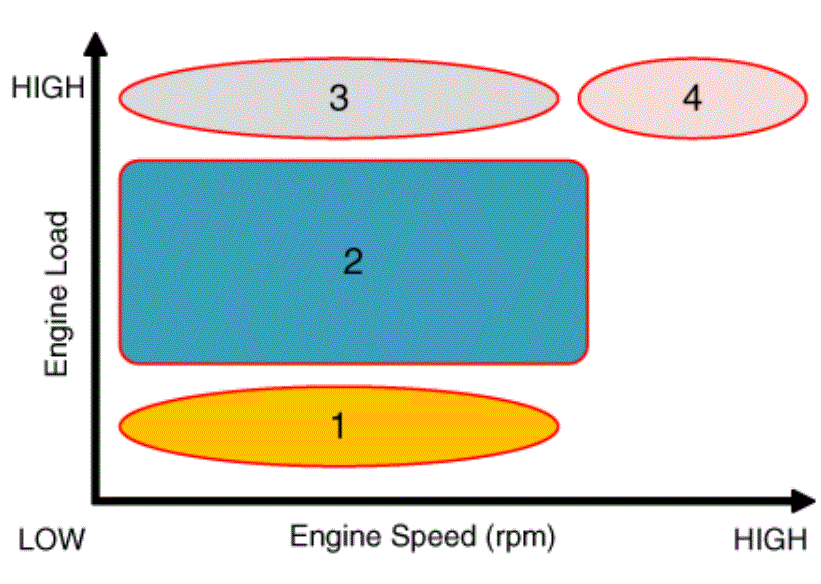

CVVT System Mode

G15547308Courtesy of HYUNDAI MOTOR AMERICA

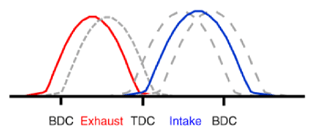

  1. Low Speed/Low Load
    G15547309Courtesy of HYUNDAI MOTOR AMERICA

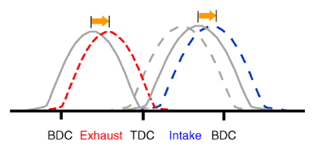

  2. Part Load
    G15547310Courtesy of HYUNDAI MOTOR AMERICA

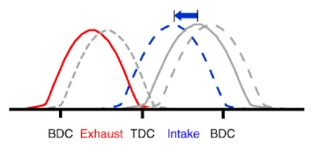

  3. Low Speed/High Load
    G15547311Courtesy of HYUNDAI MOTOR AMERICA

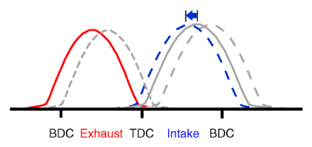

  4. High Speed/High Load
    G15547312Courtesy of HYUNDAI MOTOR AMERICA
    Driving Condition Exhaust Valve Intake Valve
    Valve Timing Effect Valve Timing Effect
    (1) Low Speed/Low Load Completely Advance * Valve Under-lap
    * Improvement of combustion stability    		 Middle * Valve Under-lap
    * Improvement of combustion stability
    (2) Part Load Retard * Reduction of HC Retard * Reduction of pumping loss
    (3) Low Speed/High Load Completely Advance * Reduction of pumping loss Advance * Prevention of intake back flow (Improvement of volumetric efficiency)
    (4) High Speed/High Load Completely Advance * Reduction of pumping loss Advance * Prevention of intake back flow (Improvement of volumetric efficiency)
