Engine Control System Diagnosis - 2.5L (2 Of 6)
>>
DTC P0112-00: Intake Air Temperature Sensor 1 Circuit Low Input
>>
Troubleshooting
>>
Diagnostic Flow-chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

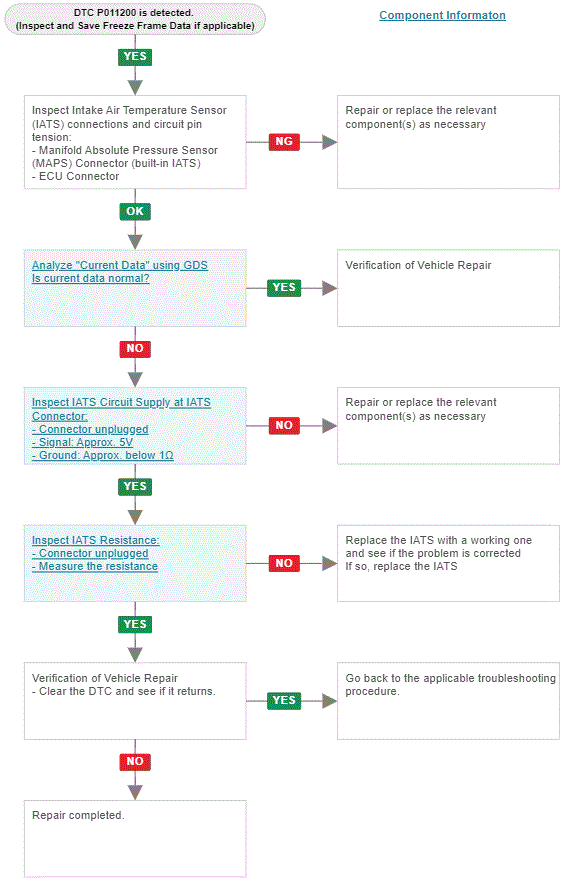

Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
