Genesis
>>
2021
>>
G80 2.5T Advanced, AWD
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 2.5L (5 Of 6)
>>
DTC P062B-84: Internal Control Module Fuel Injector Control Performance
>>
Troubleshooting
>>

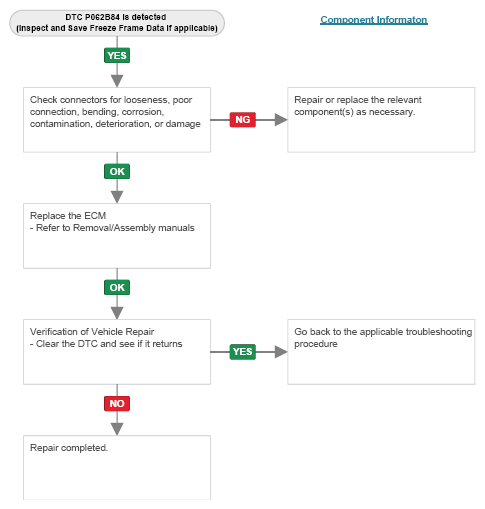

Diagnostic Flow-chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
