Engine Control System Diagnosis - 2.5L (5 Of 6)
>>
DTC P064A-00: Fuel Pump Control Module
>>
Troubleshooting
>>
Diagnostic Flow-chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Flow-chart

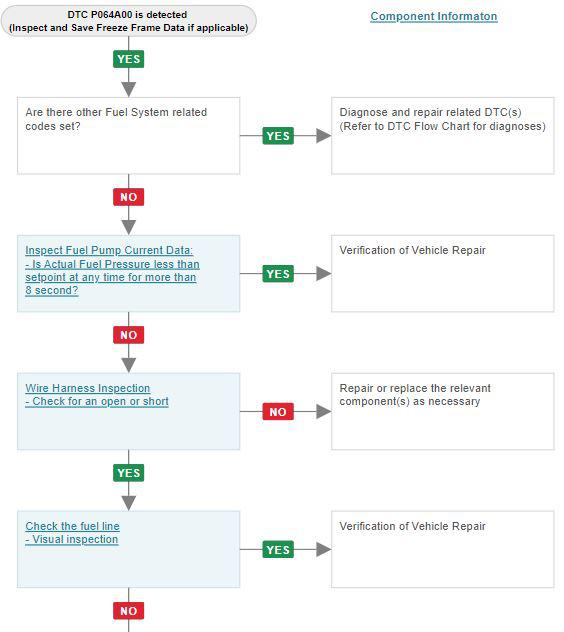

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

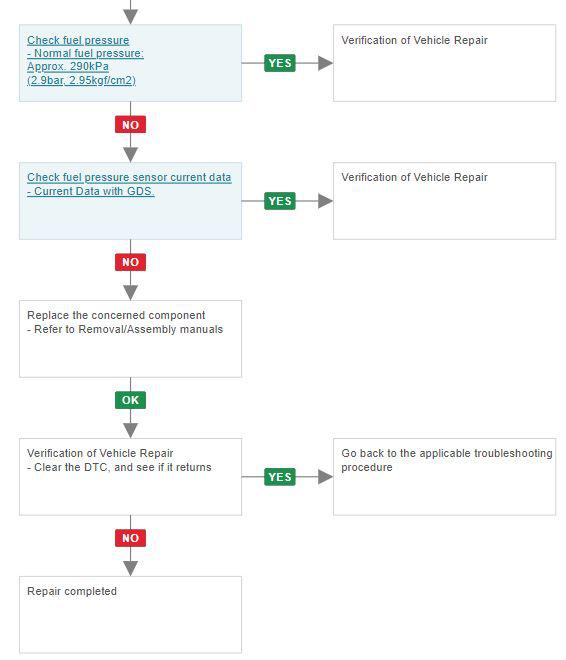

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
