Engine Performance
>>
System
>>
Engine Control System Diagnosis - 2.5L (6 Of 6)
>>
DTC P2128-00: Accelerator Position Sensor 2 Signal Circuit-High Input
>>
Troubleshooting
>>
Diagnostic Flow-chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

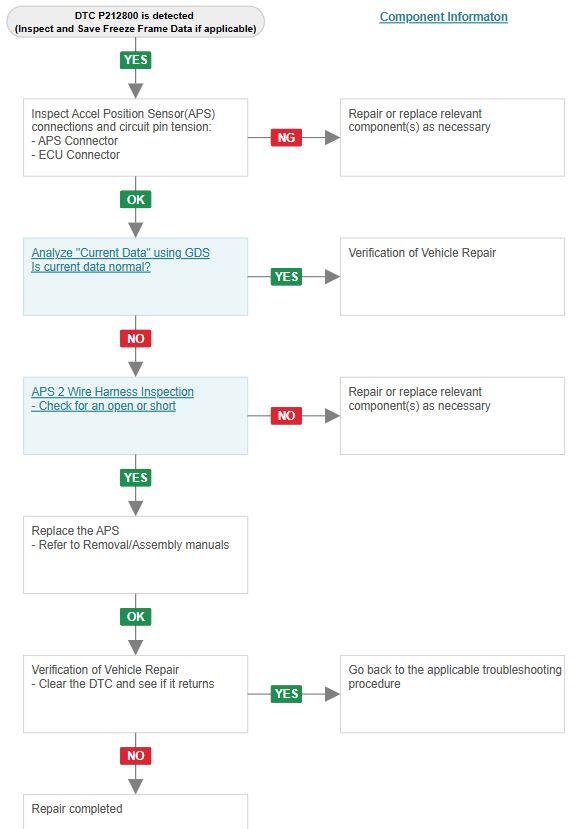

Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
