Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
Testing & Diagnosis
>>
Engine Control System Diagnosis - 2.5L (5 Of 6)
>>
DTC P064D-00: Internal Control Module O2 Sensor Processor Performance Bank 1
>>
Troubleshooting
>>
Diagnostic Flow-chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

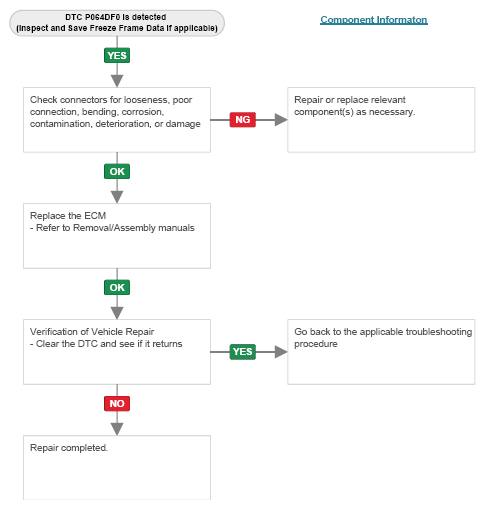

Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
