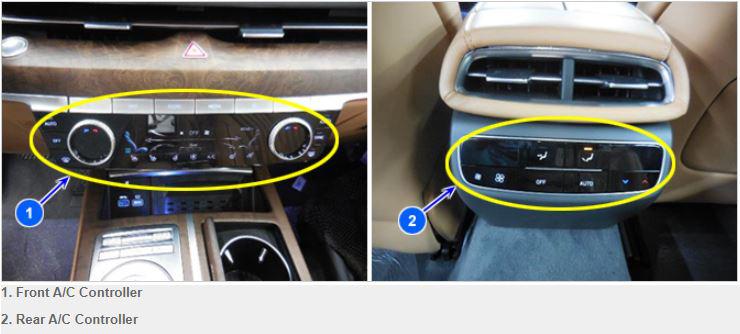

A/C Controller
The front control panel and the rear control panel communicate with Climate CAN line to enable temperature and wind control for both the driver and rear seats.

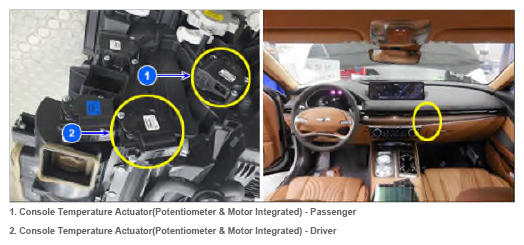

Console Temperature Actuator (Potentiometer & Motor Integrated)
The console temperature control actuator is installed on the heater module unit. When the rear seat temperature switch on the control panel is controlled to adjust the temperature on the rear seat side, the temperature control actuator adjusts the indoor temperature of the vehicle to meet the user's intention by rotating the temperature door through the motor operation.

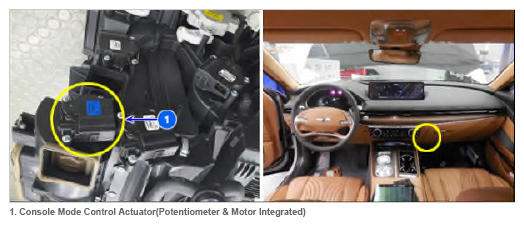

Console Mode Control Actuator (Potentiometer & Motor Integrated)
The Console Mode Control Actuator is mounted on the heater module. (In the case of 3 zones, this is the same. In the case of 3 zones +, it is mounted on the air conditioning sub module at the lower end of the armrest.) When the switch is adjusted to control the mode in the control panel, the mode actuator rotates the mode door through the motor drive and emits air to the vent and bottom of the console.

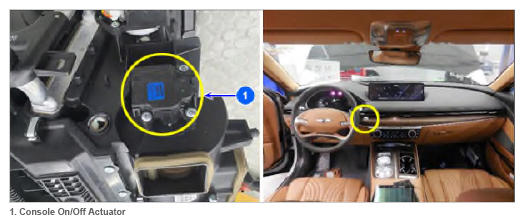

Console On/Off Actuator
The console On/Off actuator is installed on the heater module unit. The console On/Off position sensor is used with the temperature control switch located on the console vent outlet together for controlling the temperature and On/Off status of the console. The actuator operates according to the cooling and heating position, the ON/Off status, and discharges air with a temperature selected by the switch through the console outlet.

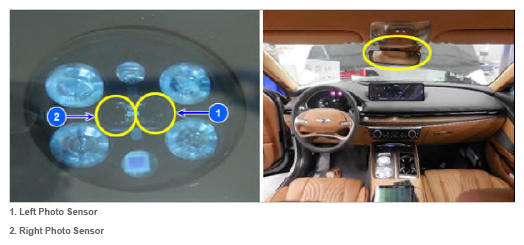

Photo Sensor
The photo sensor is located in the right side of the inside rearview mirror.
The integrated rain sensor is located in the right side of the inside rearview mirror. The integrated rain sensor is a multifunctional sensor which combines the photo sensor and auto light sensor, and has a built-in photovoltaic diode (for detecting the amount of solar radiation). The electromotive force, which is generated in proportion to the detected radiation quantity, is transferred to the automatic temperature control module to compensate air flow and discharge temperature in the air conditioning system.
