OCS (Occupant Classification System) Sensor

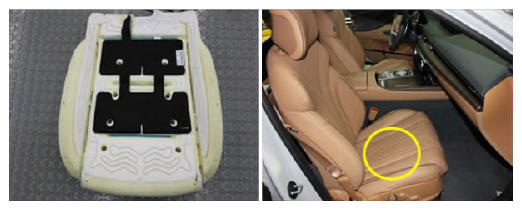

G15557681Courtesy of HYUNDAI MOTOR AMERICA

The BodySense system detects seat occupancy and classifies the occupant by using an electrical field sensor. Unlike the pressure sensitive matrix sensor, the electrical field sensor is very sensitive to moisture and electronic devices and therefore please give customers advice not to put any electronic devices on or around the passenger seat cushions and also spill water or beverage on the seat cushions.
