Corrective Action

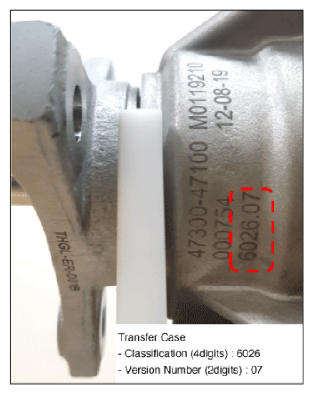

  1. Check the classification (4digits) and version number (2digits) which is carved on the transfer case.
  2. Enter the "HW Characteristics" on GDS S/W Management.
  3. Clear the DTC with GDS. (* DTC will keep setting, before entering the classification)
    G15559490Courtesy of HYUNDAI MOTOR AMERICA

    "History"

    • The DTC is caused by a simple mistake. Clear the DTC.
