Genesis
>>
2021
>>
G80 2.5T Advanced, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Integrated Memory System (IMS)
>>
Memory Power Seat Unit
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Assist memory Power Seat Module (APSM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

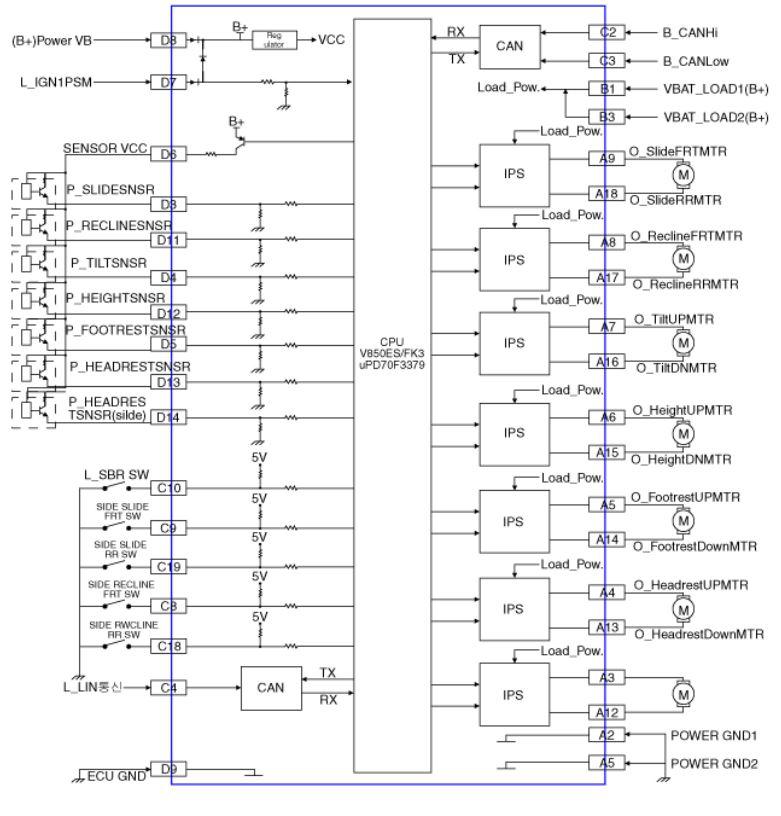

Assist memory Power Seat Module (APSM)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
