Removal & Installation: Notes

Turn the ignition switch OFF.
Open the tail gate.

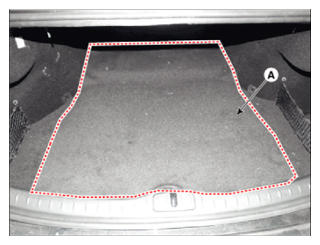

Remove the luggage covering mat (A).

Courtesy of HYUNDAI MOTOR AMERICA

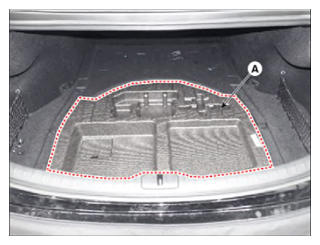

Remove the luggage center tray (A).

Courtesy of HYUNDAI MOTOR AMERICA

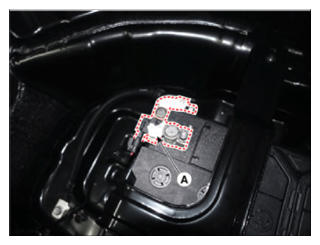

Disconnect the battery negative (-) terminal (A).
Tightening torque:

5.9 - 11.8 N.m (0.6 - 1.2 kgf.m, 4.3 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

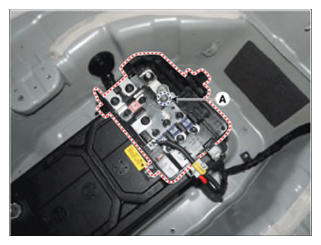

Disconnect the battery positive (+) terminal (A).
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

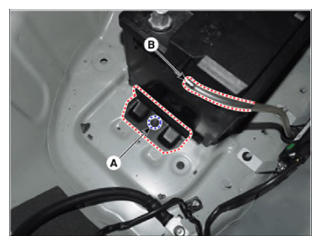

Disconnect the vent hose (B) and then remove the battery mounting bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA
