Repair Procedures: Removal

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the luggage side trim [LH]. (Refer to Body - "LUGGAGE SIDE TRIM ")

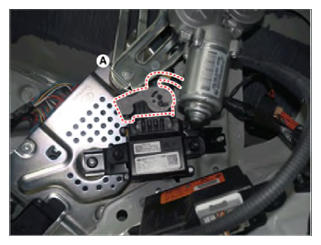

Disconnect the fuel pump control module connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

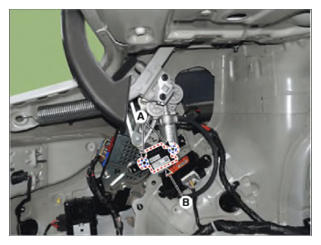

After loosening the mounting nuts (A), then remove the fuel pump control module (B).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
