Low Pressure Fuel Pump
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

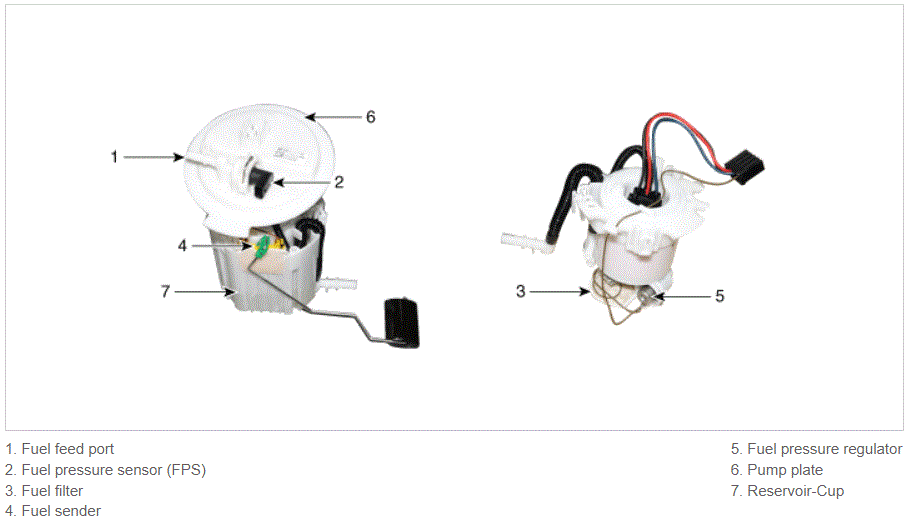

Low Pressure Fuel Pump
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
