Repair Procedures: Removal
- Remove the fuel pump. (Refer to Fuel Delivery System - "FUEL PUMP ")

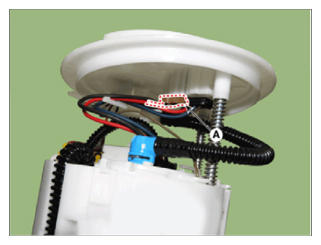

- Disconnect the fuel sender connector (A).
- Remove the fuel sender (B) after releasing the fixing hooks (A).

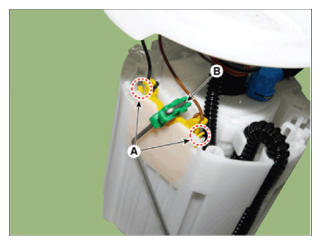

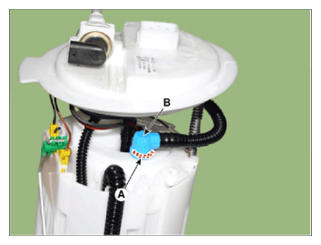

- Remove the fuel feed tube quick-connector (B) after releasing the fixing clip (A).

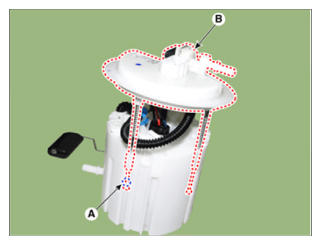

- Remove the head assembly (B) after releasing the fixing clip (A).

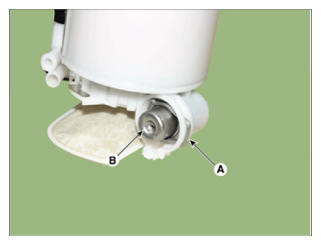

- Remove the suction port (A) from the reservoir cap.

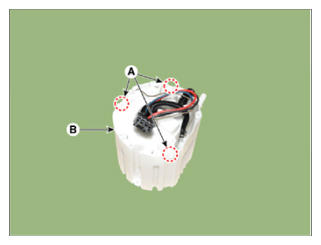

- Remove the reservoir-cup (B) after releasing the fixing hooks (A).

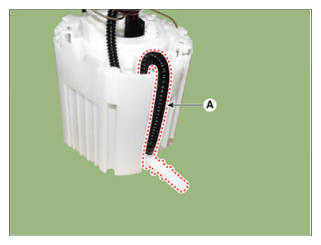

- Disconnect the ground cable (A).

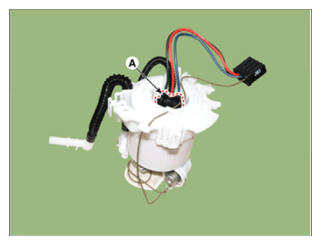

- Disconnect the fuel pump motor connector (A).

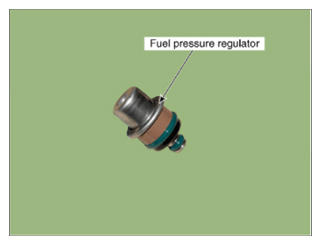

- Release the fixing hooks (A) and then remove fuel pressure regulator (B).
