Fuel Pressure Sensor (FPS): Specifications: Specification

Pressure [KPa (kgf/cm2, psi)] Output Voltage (V)
50 (0.51, 7.3) 0.3
600 (6.12, 87.0) 2.5
1100 (11.2, 159.5) 4.5

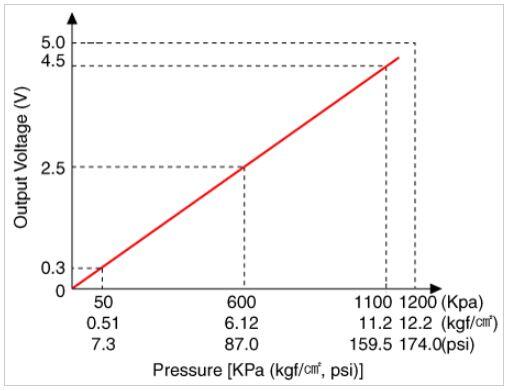

G15547560Courtesy of HYUNDAI MOTOR AMERICA
