Repair Procedures: Removal
- Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the rear seat (LH). (Refer to Body - "REAR SEAT ASSEMBLY ")

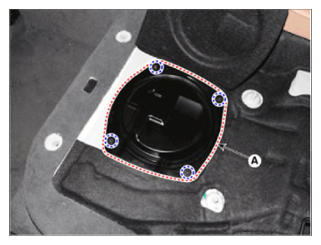

- Remove the fuel pump service cover (A) after loosening the mounting screws.

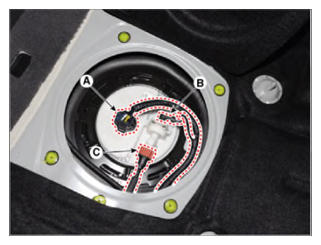

- Disconnect the fuel pump connector (A).
- Disconnect the fuel pressure sensor connector (B).
- Disconnect the fuel feed tube quick-connector (C).

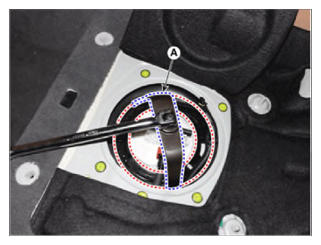

- Remove the locking ring (B) by using the special service tool (A) [No.: 09310 - B8100].NOTE:
- When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
- When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.

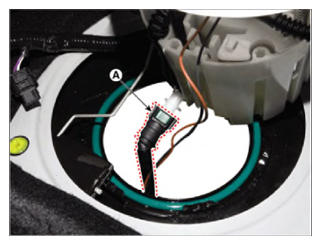

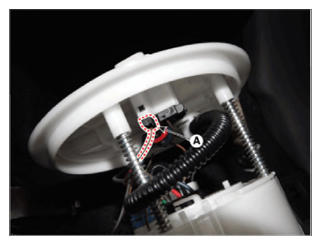

- Disconnect the sub fuel sender connector (A).
- Disconnect the main suction quick-connector (A).
- Remove the fuel pump from the fuel tank.
