Repair Procedures: Removal

  1. Remove the fuel pump. (Refer to Fuel Delivery System - "FUEL PUMP ")

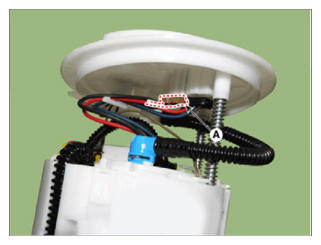

  2. Disconnect the fuel sender connector (A).
    G15547527Courtesy of HYUNDAI MOTOR AMERICA

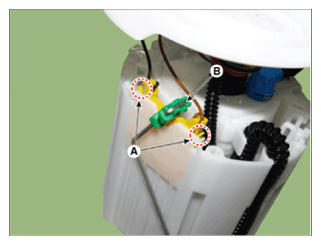

  3. Remove the fuel sender (B) after releasing the fixing hooks (A).
    G15547528Courtesy of HYUNDAI MOTOR AMERICA
    G15547529Courtesy of HYUNDAI MOTOR AMERICA
