Diagnostic Flow-chart

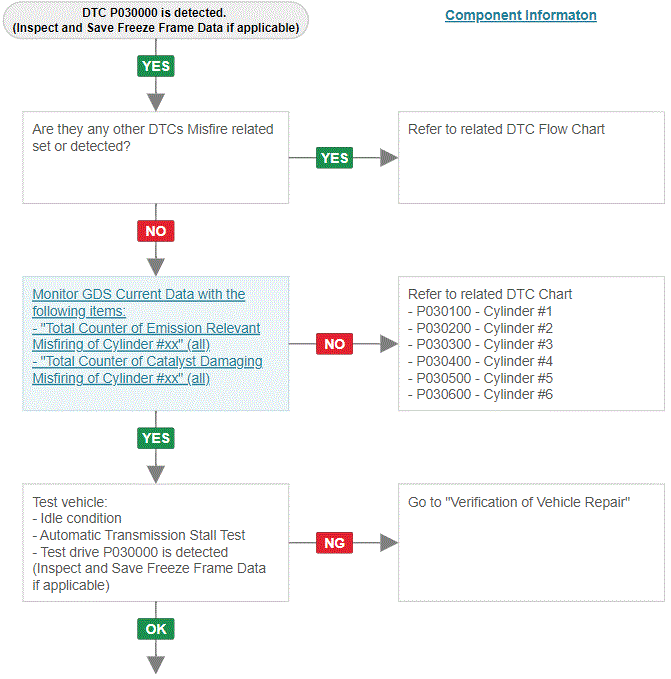

Fig 1: 1 Of 3
G15556212Courtesy of HYUNDAI MOTOR AMERICA

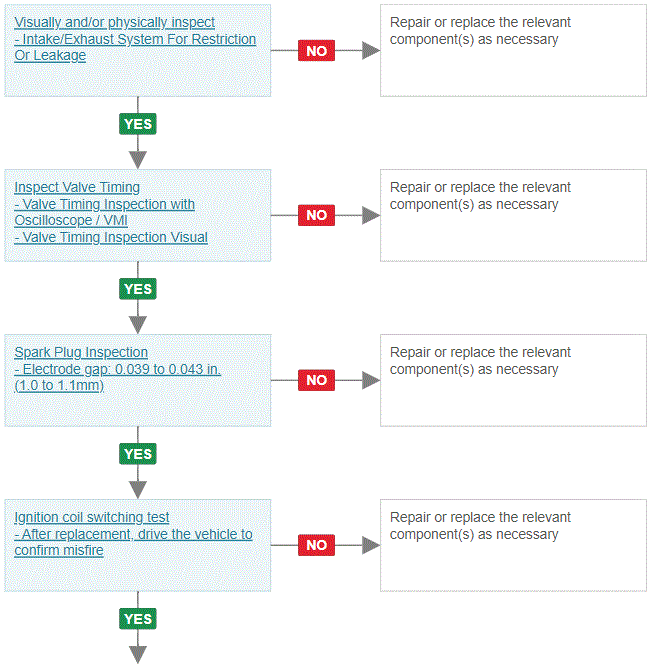

Fig 2: 2 Of 3
G00638608Courtesy of HYUNDAI MOTOR AMERICA

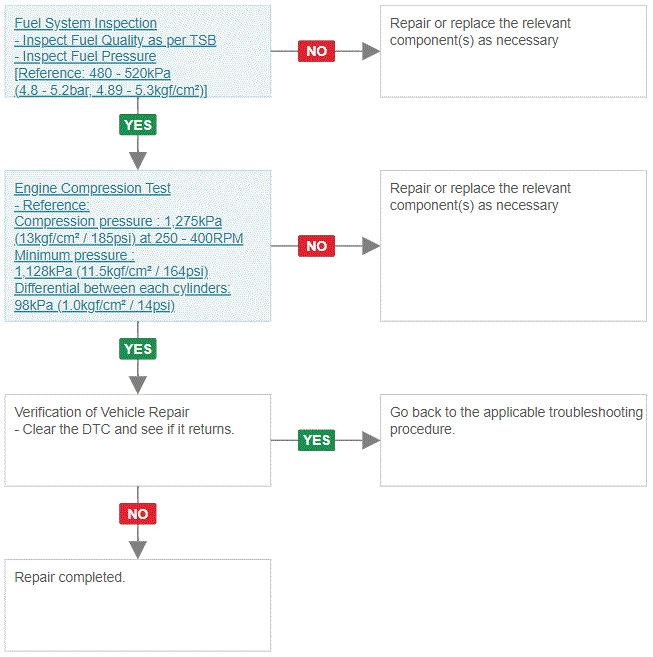

Fig 3: 3 Of 3
G00638609Courtesy of HYUNDAI MOTOR AMERICA
