Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.
- Open the trunk.

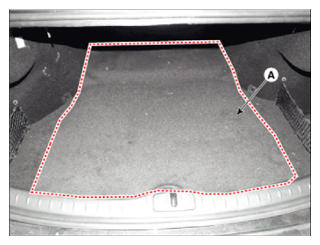

- Remove the luggage covering mat (A).

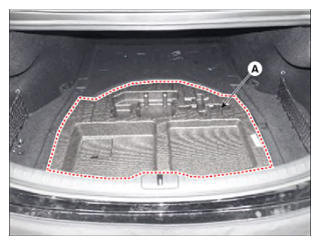

- Remove the luggage center tray (A).

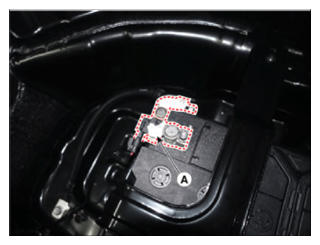

- Disconnect the battery negative terminal (A).
Tightening torque:
5.9 - 11.8 N.m (0.6 - 1.2 kgf.m, 4.3 - 8.7 lb-ft)

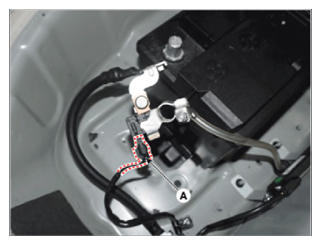

- Disconnect the battery sensor connector (A).

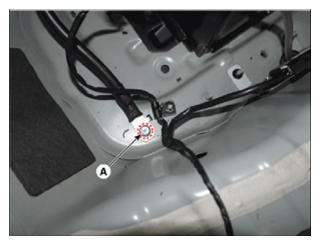

- After removing the battery sensor, remove the mounting bolt (A).
Tightening torque:
26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb-ft)
