Battery Sensor Fuse: Notes

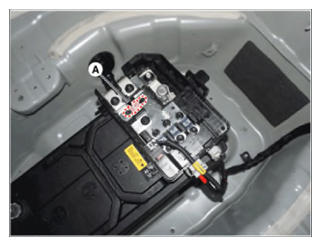

1. Check the battery sensor fuse (A) for continuity.

   Courtesy of HYUNDAI MOTOR AMERICA

2. If the alternator fuse is blown, replace the battery sensor fuse.

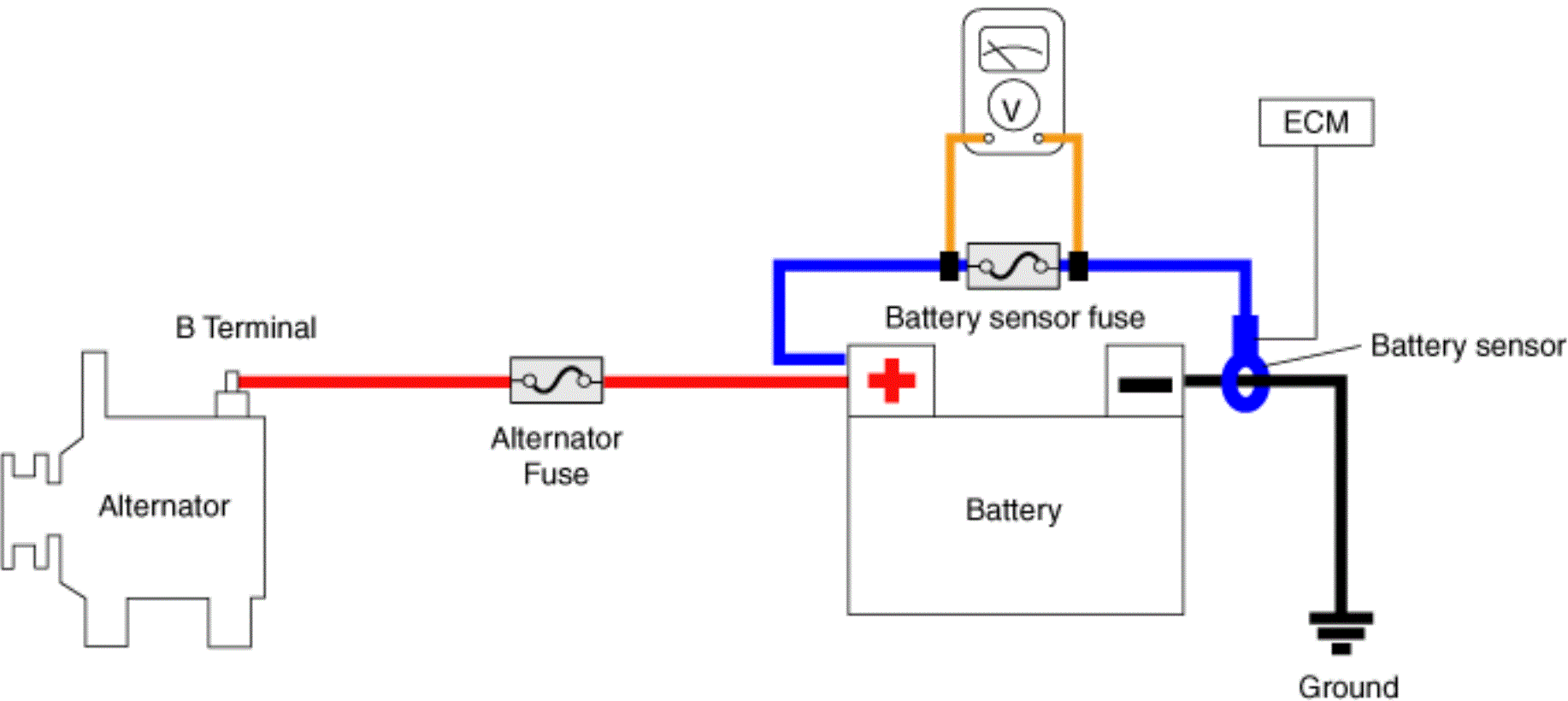

3. Measure the voltage.

   Standard value:  Approximately 0V

   Courtesy of HYUNDAI MOTOR AMERICA

1. 3. Inspect Drive Belt
   1. Visually check the belt for excessive wear, frayed cords etc.

      If any defect has been found, replace the drive belt.

      NOTE:

      • Cracks on the rib side of a belt are considered acceptable. If the belt has chunks missing from the ribs, it should be replaced.

      Courtesy of HYUNDAI MOTOR AMERICA

2. 4. Measure and adjust drive belt tension. (Refer to Engine Mechanical System - "DRIVE BELT ")
3. 5. Visually check alternator wiring and listen for abnormal noises.
   1. Check that the wiring is in good condition.
   2. Check that there is no abnormal noise from the alternator while the engine is running.
4. 6. Check Discharge Warning Light Circuit
   1. Warm up the engine and then turn it off.
   2. Turn of fall accessories.
   3. Turn the ignition switch "ON". Check that the discharge warning light is lit.
   4. Start the engine. Check that the light is lit.

If the light does not go off as specified, troubleshoot the discharge light circuit.
