Components And Components Location: Components: 2WD

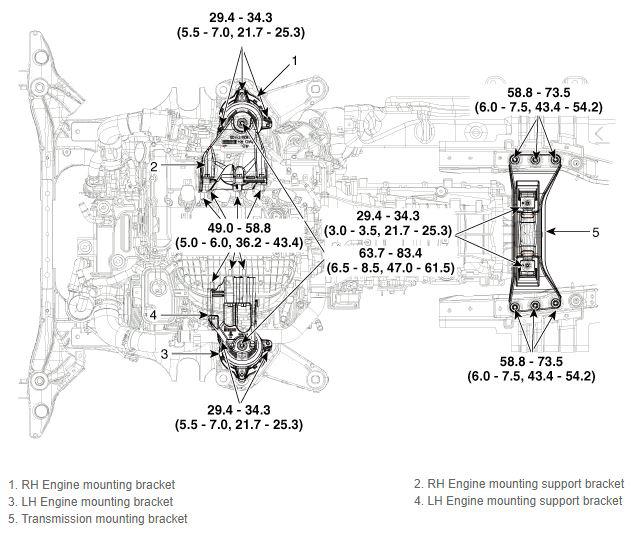

Fig 1: Engine Mounting Components Location With Torque Specifications (2WD)
G15546699Courtesy of HYUNDAI MOTOR AMERICA
