A/C Module: Overview

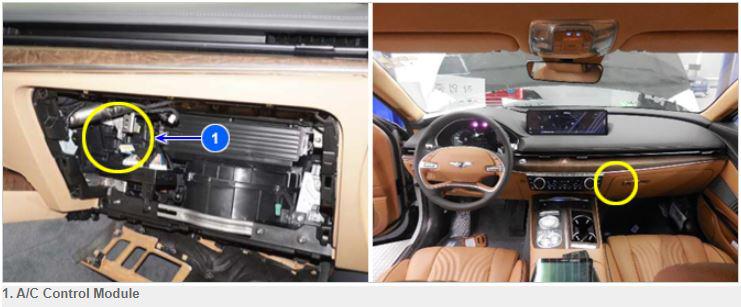

G15557501Courtesy of HYUNDAI MOTOR AMERICA

The front control panel and the rear control panel communicate with K-Line to enable temperature and wind control for both the driver and rear seats.
