Components And Components Location: Components

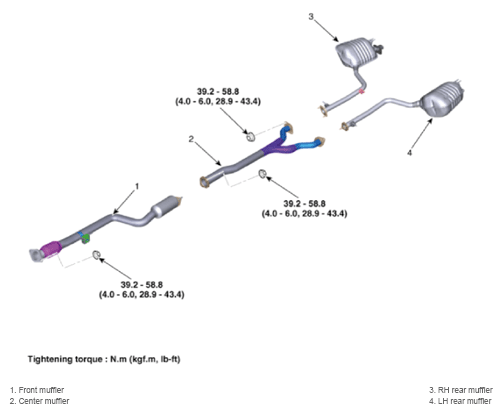

Fig 1: Muffler Components Location With Torque Specification
G15547103Courtesy of HYUNDAI MOTOR AMERICA
