Engine Control System Diagnosis - 2.5L (5 Of 6)
>>
DTC P0647-00: A/C Clutch Relay Control Circuit High
>>
Troubleshooting
>>
Diagnostic Flow-chart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

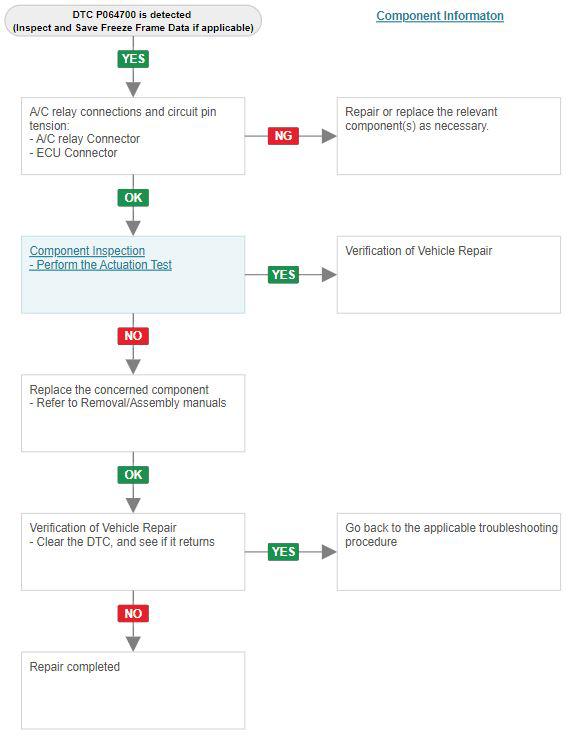

Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
