Engine Control System Diagnosis - 2.5L (4 Of 6)
>>
DTC P050B-00: Cold Start Ignition Timing Performance
>>
Troubleshooting
>>
Diagnostic Flow-chart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Flow-chart

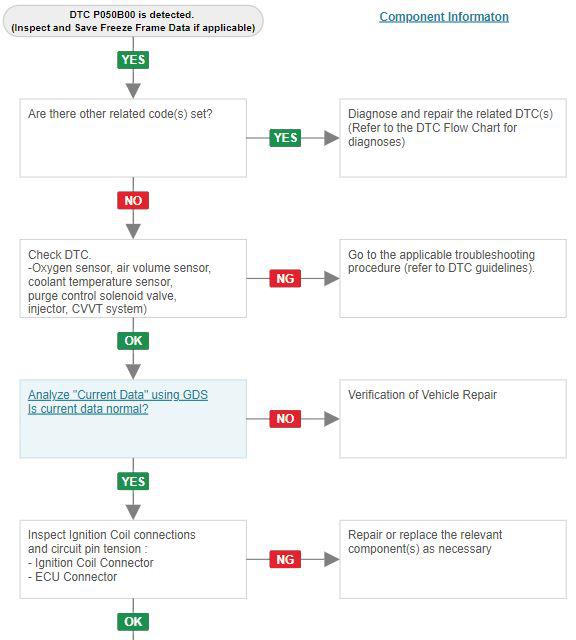

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

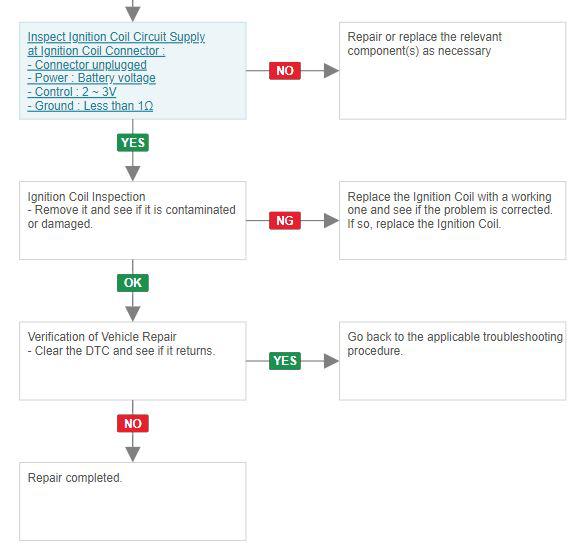

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
