Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the rear left wheel & tire and wheel house cover.

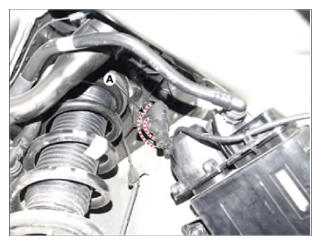

- Disconnect the vent hose quick-connector (A).

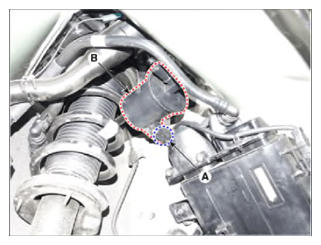

- Remove the installation bolts, and than remove the fuel tank air filter bracket (A).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

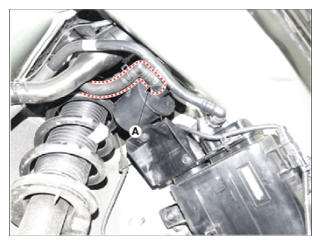

- Remove the fuel tank air filter (A) by rotating it about 30°.

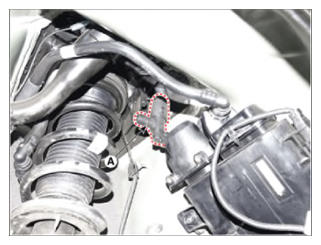

- Disconnected the canister close valve connector (A).

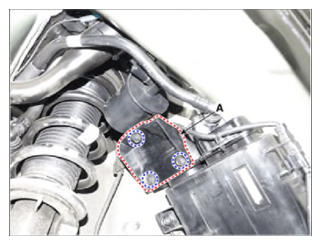

- Remove the Canister Close Valve (A) by rotating it about 30°.
