Components and Components Location: Components: 2WD

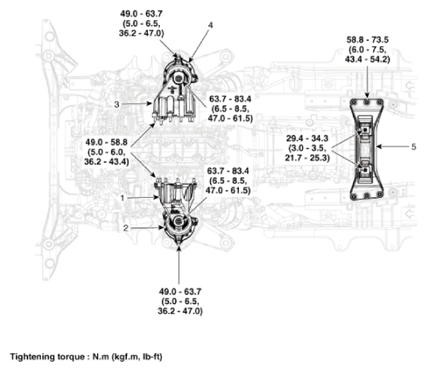

Fig 1: Engine Mounting Components Location With Torque Specification (2WD)
G15555484Courtesy of HYUNDAI MOTOR AMERICA
