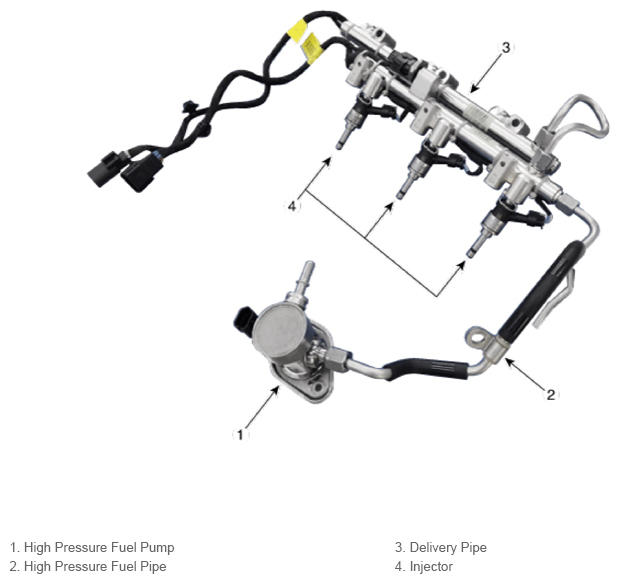

High Pressure Fuel Line

Courtesy of HYUNDAI MOTOR AMERICA

WARNING:

In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. Do not conduct any repair work right after the engine stops.
