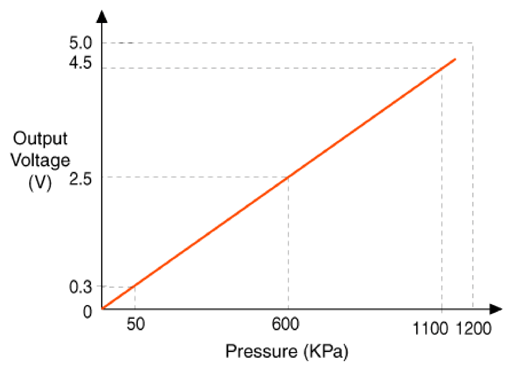

Fuel Pressure Sensor FPS: Specifications: Specification

Pressure (kPa) Output Voltage (V)
50 0.3
600 2.5
1100 4.5
G14233255Courtesy of HYUNDAI MOTOR AMERICA
