Fuel Pressure Sensor FPS: Specifications: Specification

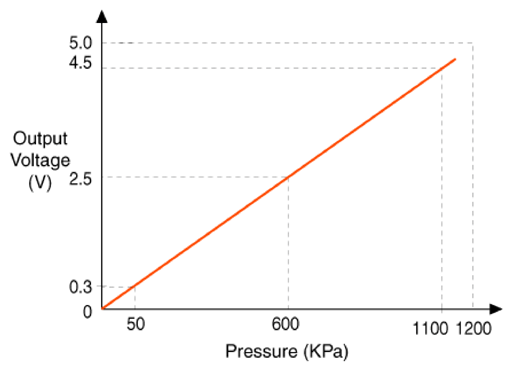

Pressure (kPa) Output Voltage (V)
50 0.3
600 2.5
1100 4.5
G14237200Courtesy of HYUNDAI MOTOR AMERICA
