Connector Assembly Status Test

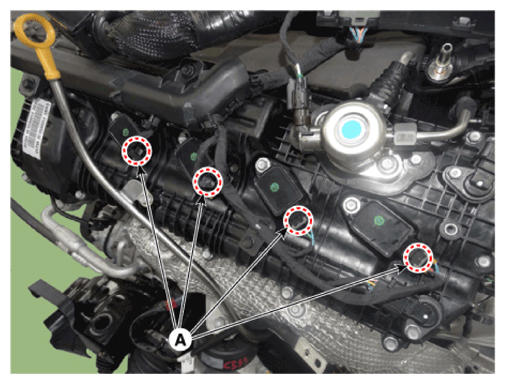

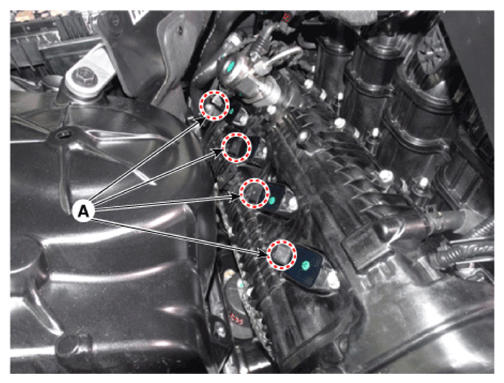

  1. Remove the connector (A) and reinstall it.
G14236887Courtesy of HYUNDAI MOTOR AMERICA
G14236888Courtesy of HYUNDAI MOTOR AMERICA

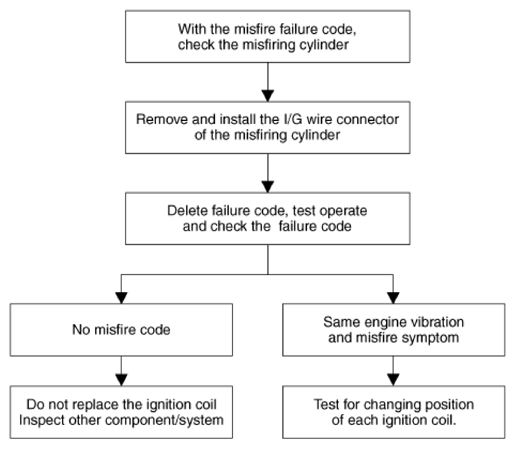

G14236889Courtesy of HYUNDAI MOTOR AMERICA
