Repair Procedures: Installation

  1. To install, reverse the removal procedure.
  2. Input oil-pressure characteristics received backup in new TCM.

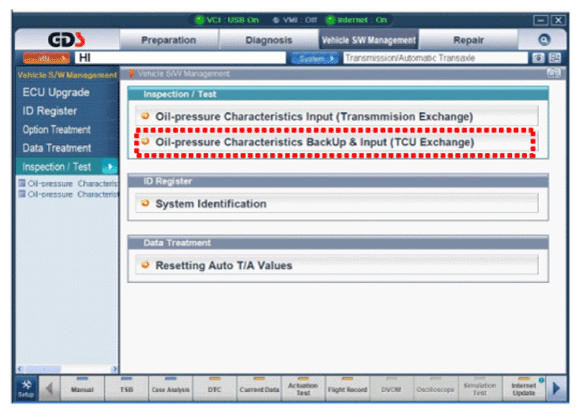

    G14237311Courtesy of HYUNDAI MOTOR AMERICA

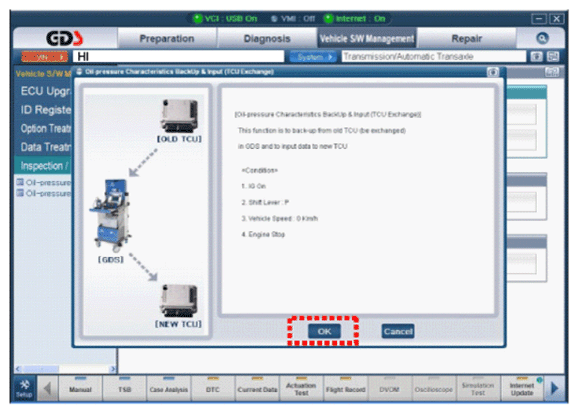

    G14237312Courtesy of HYUNDAI MOTOR AMERICA

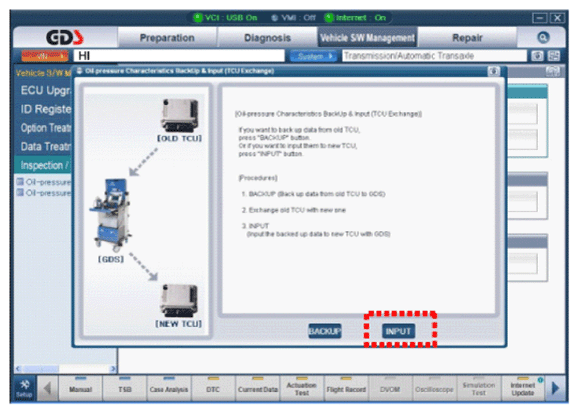

    G14237313Courtesy of HYUNDAI MOTOR AMERICA

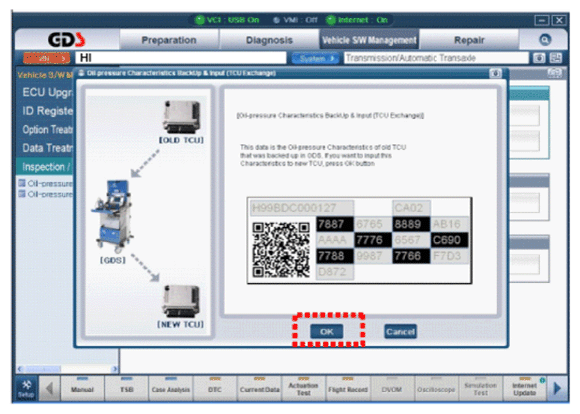

    G14237314Courtesy of HYUNDAI MOTOR AMERICA

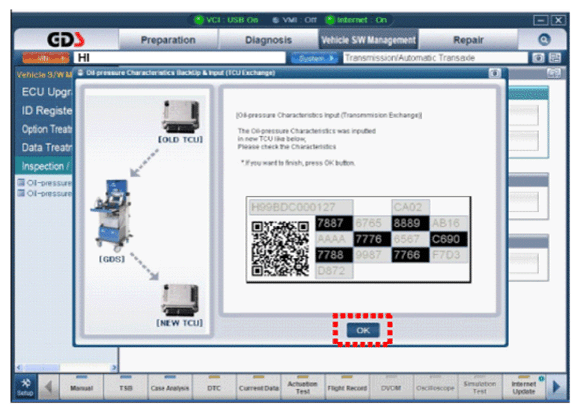

    G14237315Courtesy of HYUNDAI MOTOR AMERICA
  3. Perform the TCM adaptive values learning procedure.

    (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
