Repair Procedures: Removal

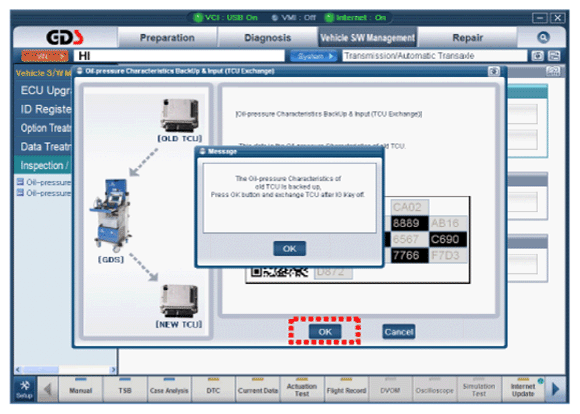

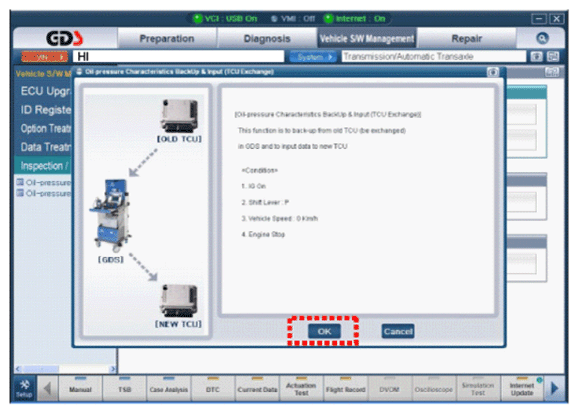

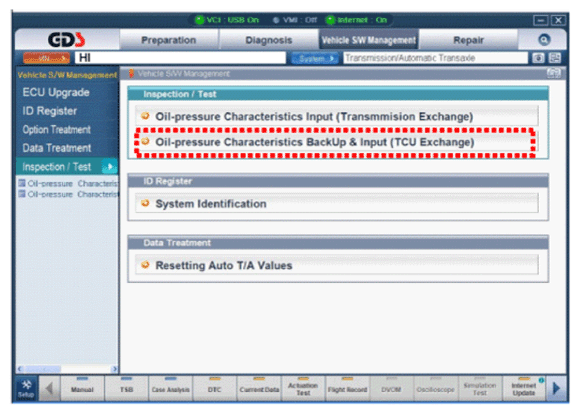

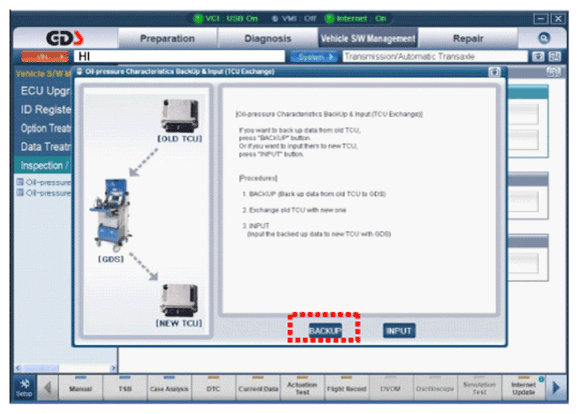

- Backup oil-pressure characteristics of old TCM in the GDS.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.

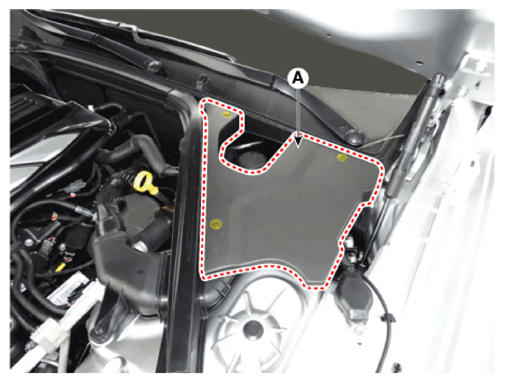

- Remove the cover (A) after removing the clips.

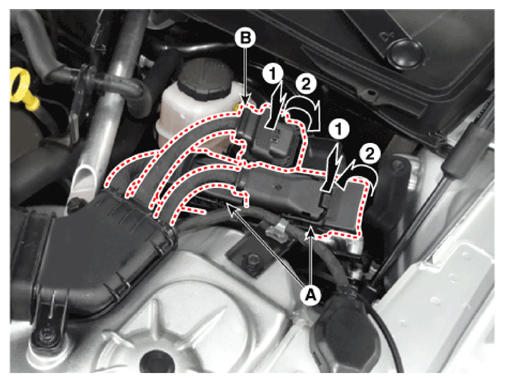

- Disconnect the ECM connector (A) and TCM connector (B).

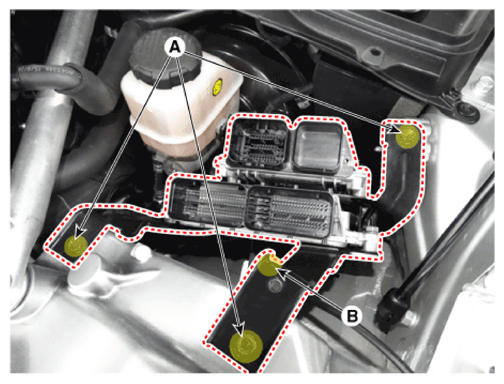

- Remove the TCM & ECM after removing the bolts (A) and nut (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

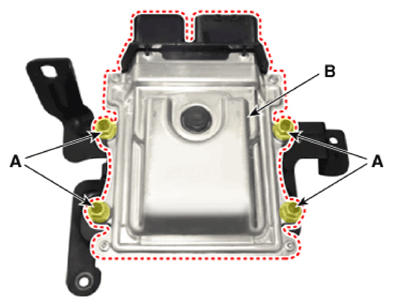

- Remove the TCM (B) after removing the nuts (A).
