Repair Procedures: Inspection

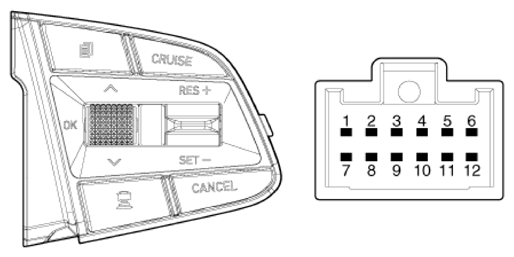

- Disconnect the cruise control switch connector.
- Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
Function switch Terminal Resistance (±1%) CANCEL 2 - 3 550Ω SET (-) 2 - 3 880Ω RES (+) 2 - 3 1.44Ω CRUISE 2 - 3 2.54Ω SCC 2 - 3 5.54Ω - If not within specification, replace switch.
