Repair Procedures: Disassembly

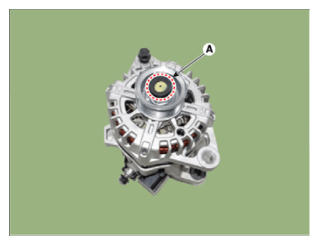

  1. Remove the shaft cap (A).
    G14721144Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, replace with new shaft cap.

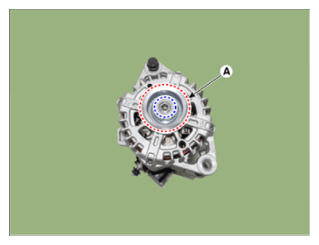

  2. Remove the pulley (A) after loosening the mounting nut.
    G14721145Courtesy of HYUNDAI MOTOR AMERICA

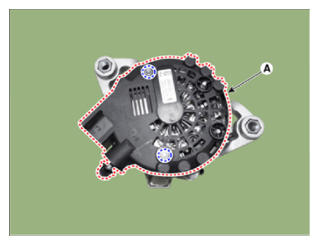

  3. Remove the alternator cover (A) after removing nuts.
    G14721146Courtesy of HYUNDAI MOTOR AMERICA

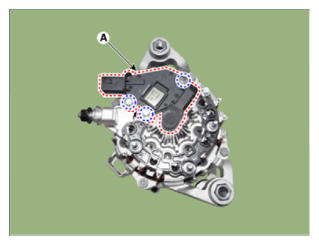

  4. Remove the mounting bolts and the brush holder assembly (A).
    G14721147Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the slip ring guide (A) after pulling it.
    G14721148Courtesy of HYUNDAI MOTOR AMERICA

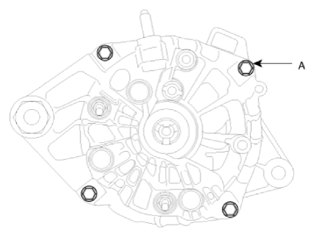

  6. Remove the mounting bolt (A).
    G14721149Courtesy of HYUNDAI MOTOR AMERICA

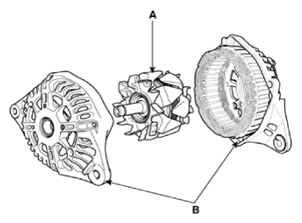

  7. Disconnect the rotor (A) and bracket (B).
    G14721150Courtesy of HYUNDAI MOTOR AMERICA
