Terminal Function
[200W]
| Pin | Description |
|---|---|
| 1 | Battery power (B+) input |
| 2 | - |
| 3 | - |
| 4 | Battery power (B+) output |
| 5 | - |
| 6 | IGN1 input |
| 7 | ISG signal input |
| 8 | ACC input |
| 9 | ACC output |
| 10 | Ground |

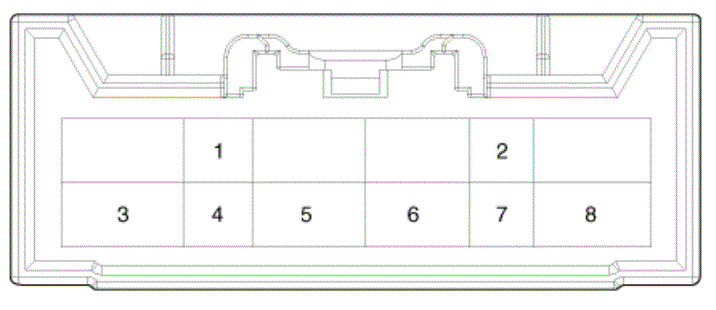

[400W]
| Pin | Description |
|---|---|
| 1 | IGN1 input |
| 2 | ACC input |
| 3 | Battery power (B+) input |
| 4 | ISG signal input |
| 5 | Ground |
| 6 | Ground |
| 7 | ACC output |
| 8 | Battery power (B+) output |
