Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the luggage floor tray assembly. [5-seater], [7-seater]
(Refer to Body - "Trunk Trim - COMPONENTS & COMPONENTS LOCATION ")

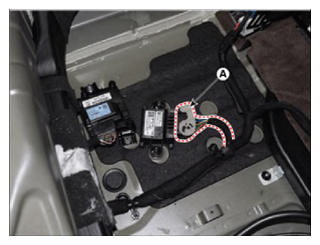

- Disconnect the fuel pump control module connector (A).

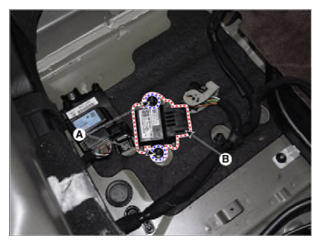

- After loosening the mounting nuts (A), then remove the fuel pump control module (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
