Genesis
>>
2021
>>
GV80 2.5T Advanced, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 2.5L (5 Of 6)
>>
DTC P062D-00: Fuel Injector Driver Circuit Performance Bank 1
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

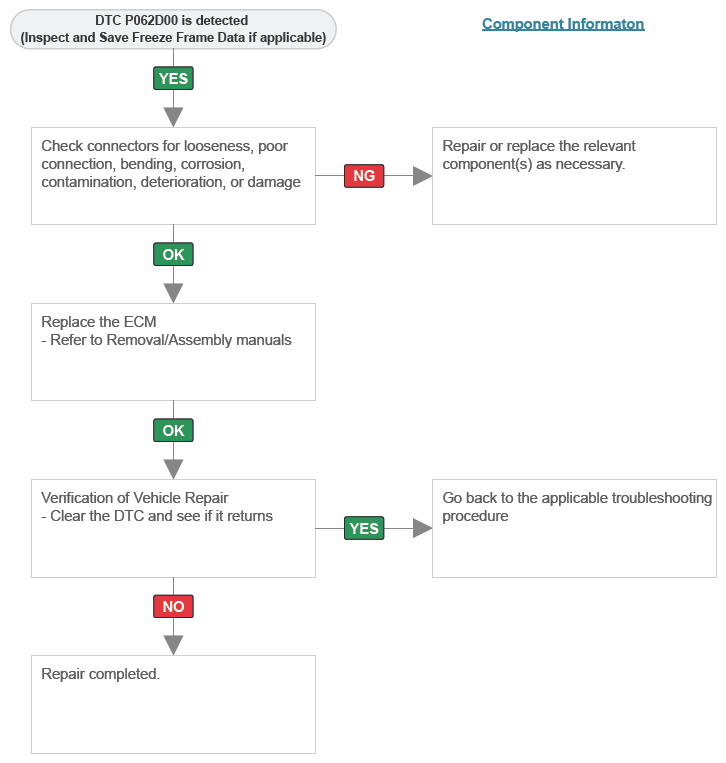

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
