Engine Control System Diagnosis - 2.5L (5 Of 6)
>>
DTC P2100-00: Electric Throttle Valve Control System (ETS) Motor Power Open
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

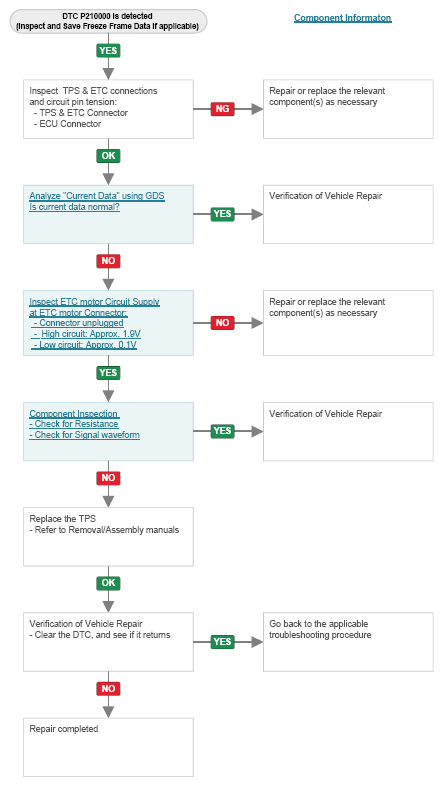

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
