Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF.
- Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")

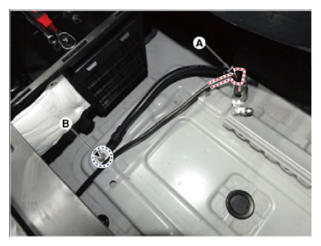

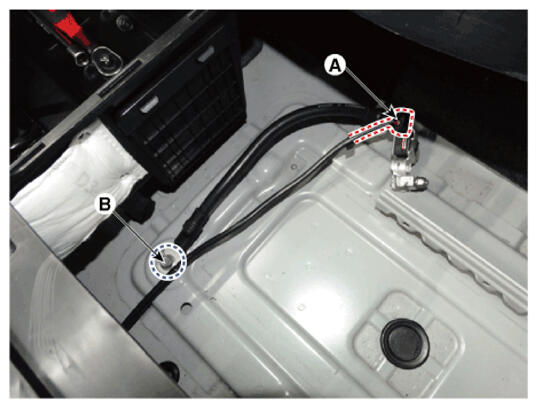

- Disconnect the battery sensor connector (A).
- Remove the battery sensor cable after loosening the battery sensor cable flange bolt (B).
Tightening torque:
27.5 - 33.3 N.m (2.8 - 3.4 kgf.m, 20.3 - 24.6 lb-ft)
