Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the water cooled intercooler.
(Refer to Engine Mechanical System - "WATER COOLED INTERCOOLER ")

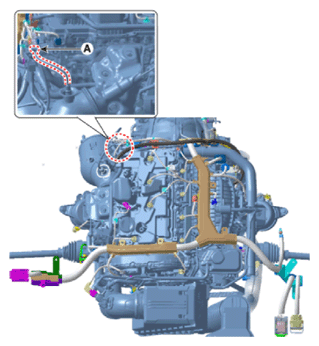

Remove the Warm up Catalytic Convertor (WCC) upper heated oxygen sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

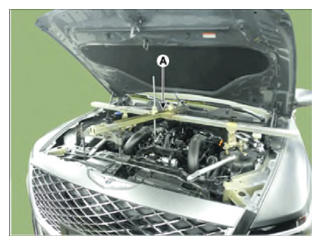

Using the engine support fixture, hold the engine and transaxle assembly safely.
(Refer to Special Service Tools - "ENGINE SUPPORT FIXTURE ASSEMBLY DRAWING ")

Courtesy of HYUNDAI MOTOR AMERICA

Remove the transfer case assembly.[In case by AWD apply]

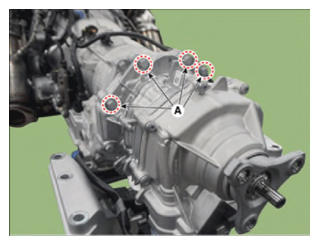

Loosen the transfer case upper mounting bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Remove the front propeller shaft assembly.

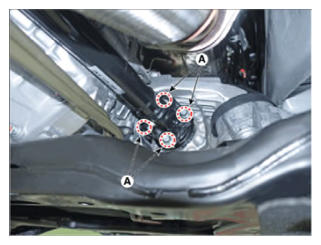

Loosen the front propeller shaft mounting bolts (A).

Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Mark the location and direction of bolt before removing the propeller shaft.
Installing the bolt and washer differently from the initial state can result in unbalanced propeller shaft causing abnormal vibration of propeller shaft at high speed.
Do not reuse the bolt.

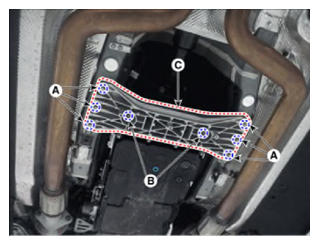

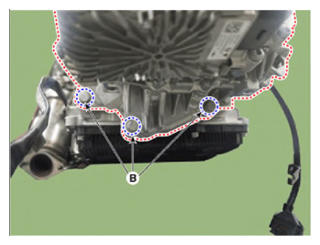

Loosen the bolts (A) and nuts (B) and then removing the transmission bracket (C).[In case by 2WD apply]
Tightening torque:
1. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
2. 39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

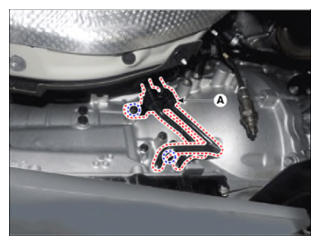

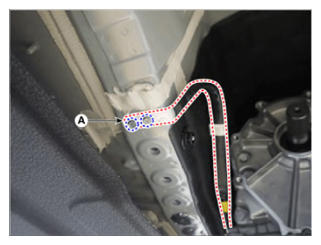

Loosen the bolts and then removing the ground line (A).

Courtesy of HYUNDAI MOTOR AMERICA

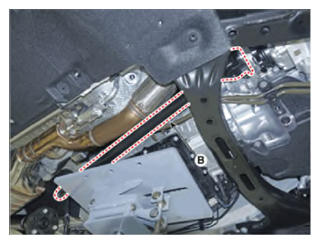

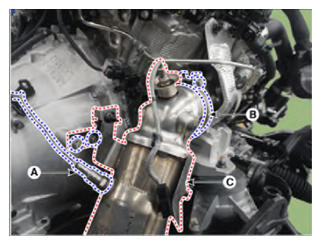

Remove the Warm up Catalytic Convertor (WCC).
1. Disconnect the HO2 sensor (A).
2. Remove the clamp (B).
3. Loosen the bolts and then removing the Warm up Catalytic Convertor (WCC) (C).
Courtesy of HYUNDAI MOTOR AMERICA

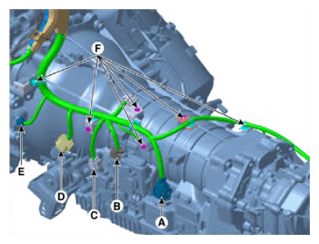

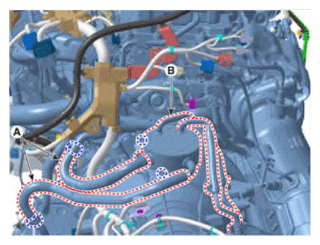

Remove the items below.
1. Main connector
2. Parking release actuator connector
3. Position sensor connector
4. Electronic Oil Pump (EOP) connector
5. Crank Position Sensor (CKPS) connector
6. Ground line and wiring bracket
Courtesy of HYUNDAI MOTOR AMERICA

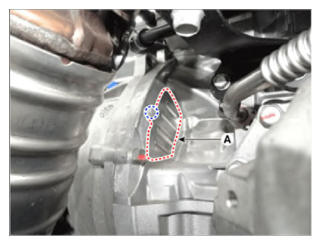

Loosen the bolt and then dust cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

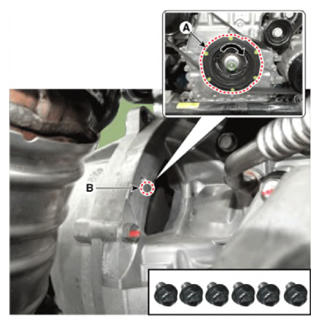

Loosen the torque converter mounting bolts (B) by rotating the crankshaft (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, apply the ATF to the bolts thread before tightening the bolts.
- When installing, lightly tighten the bolts (6-ea) and then tighten the bolts to the specified torque.

Remove the ATF warmer.

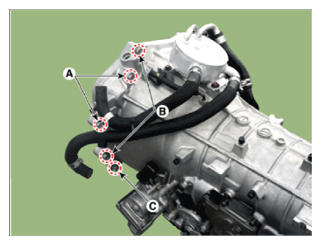

Loosen the bolts and then separate the ATF warmer feed tube (A).

Tightening torque:

7.85 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.79 - 8.68 lb-ft)

19.6 - 25.5 N.m (2.0 - 2.6 kgf.m, 14.5 - 18.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Separate the cooling hose (A) and then removing the ATF warmer (B) after loosening the bolts.

Courtesy of HYUNDAI MOTOR AMERICA

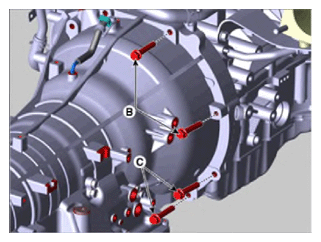

Loosen the starter mounting bolts (A) and the transmission mounting bolts (B, C).
Tightening torque:
1. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
2. 78.5 - 98.1 N.m (4.3 - 5.5 kgf.m, 57.9 - 72.3 lb-ft)
3. 39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
After separating the transmission from the engine, remove the transmission by lowering the jack slowly.
CAUTION:
- Be careful not to damage other nearby wiring or parts when removing the transmission assembly.
