End Of Line (EOL) Input
- Overview and purpose
- The purpose is to ensure the initial operation safety by correcting the oil pressure differences between transmissions.
- Condition required for inputting the hydraulic characteristic
- In case of changing the auto transmission assembly and TCM, perform "Oil-pressure characteristics input" procedure with diagnostic tool.

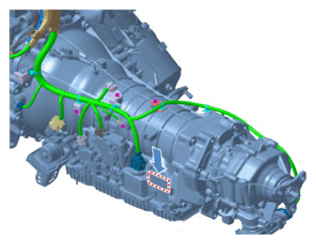

- Oil-pressure characteristics (Bar code) location.
- Method for inputting the hydraulic characteristic
- In case of changing the automatic transmission assembly.

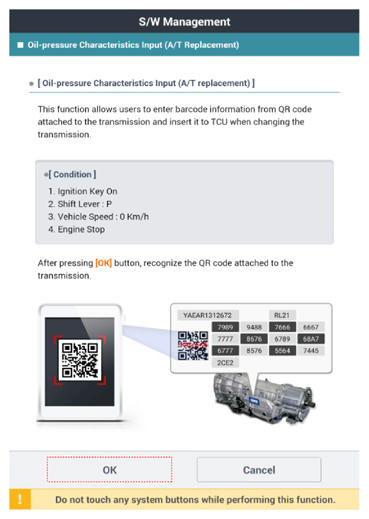

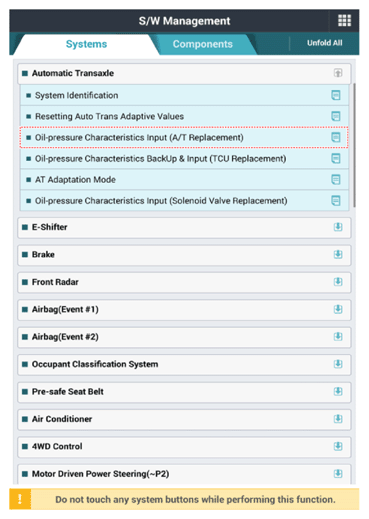

- Perform the oil pressure characteristics input procedure.
- In case of changing the TCM.
(Refer to Automatic Transmission Control System - "ADJUSTMENT ")
- In case of changing the automatic transmission assembly.
