LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Genesis
>>
2021
>>
GV80 2.5T Advanced, RWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Integrated Central Control Unit Diagnosis
>>
DTC C1818-00: CAN Time-Out LCA/BSD/BCW
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

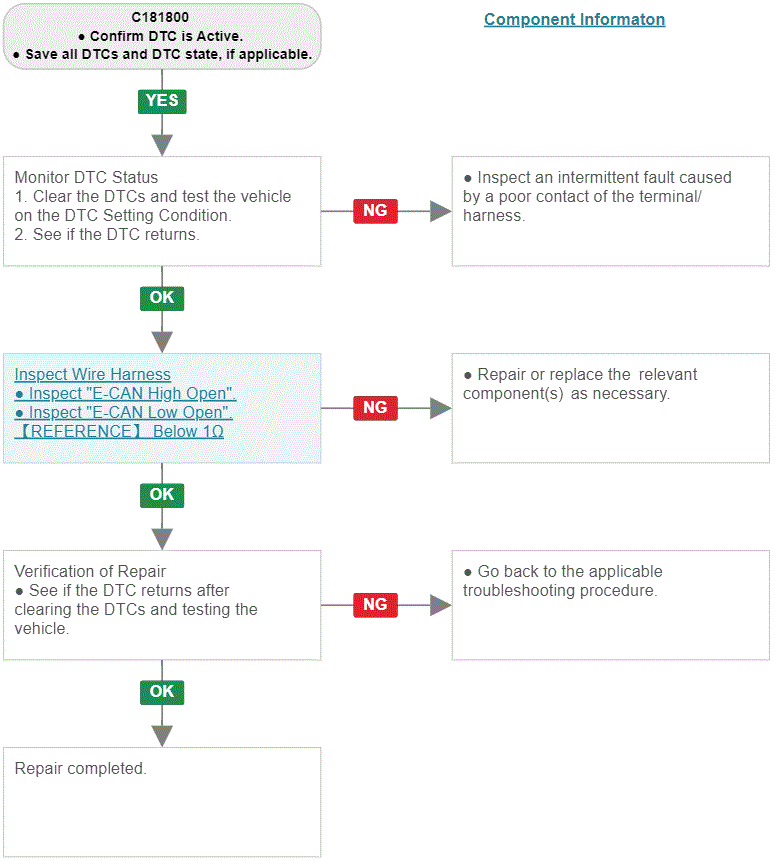

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
