Fuel Pressure Sensor

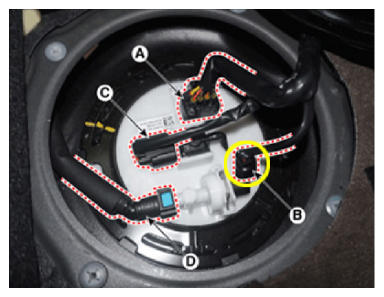

The fuel pressure sensor (FPS) is installed on the top of the low pressure fuel pump and measures the pressure in the low pressure fuel line. Based on the fuel pressure measured by the FPS and the amount of fuel consumed, the Fuel Pump Control Module (FPCM) determines whether to activate the low pressure fuel pump. After activating the low pressure fuel pump, the FPS continues to provide the fuel pressure information to the FPCM and the FPCM keeps controlling the fuel flow rate using the feedback information from the FPS.
