Engine Control System Diagnosis - 2.5L (5 Of 6)
>>
DTC P0A1A-07: Generator Control Module
>>
Troubleshooting
>>

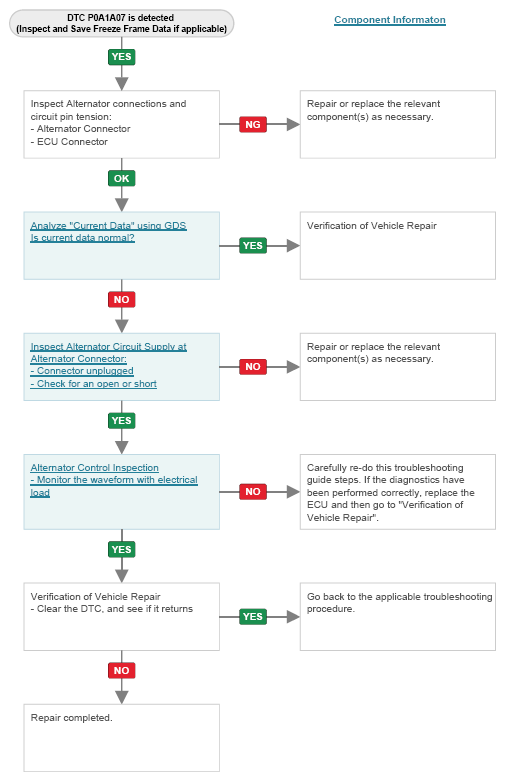

Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
