Engine Control System Diagnosis - 2.5L (1 Of 6)
>>
DTC P0031-00: HO2S Heater Control Circuit Low (Bank 1/Sensor 1)
>>
Troubleshooting
>>
Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

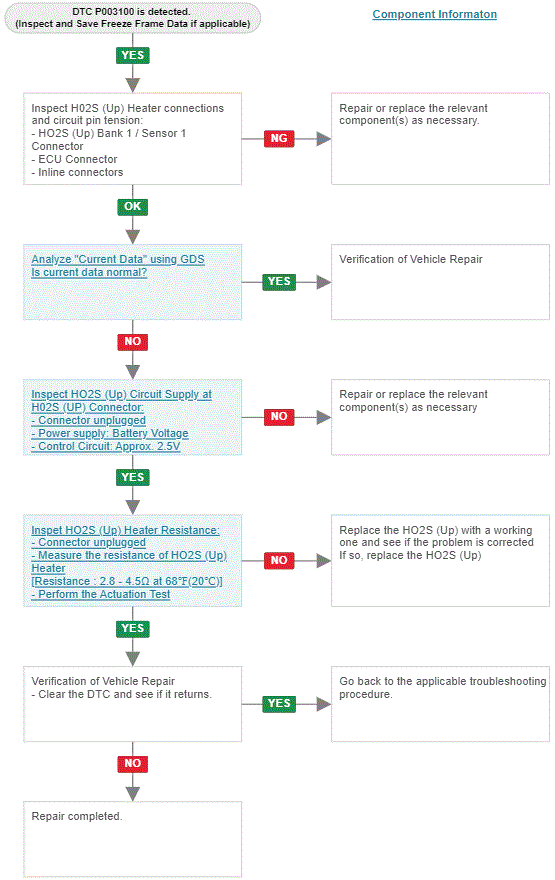

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
