Engine Control System Diagnosis - 2.5L (1 Of 6)
>>
DTC P00E0-00: Engine Coolant Temperature Sensor 2 Circuit Low
>>
Troubleshooting
>>

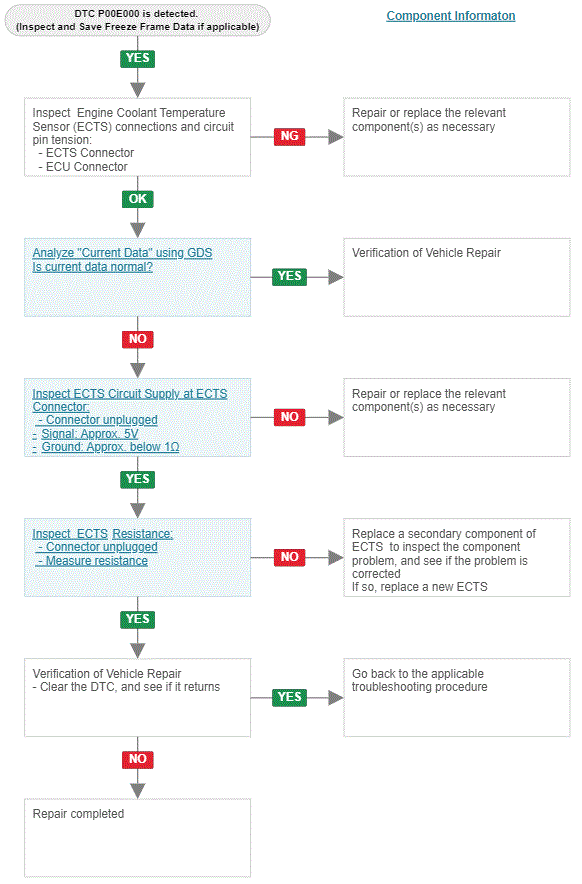

Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
